OS-SN9134 appLOK garage door relay

Description

appLOK Relay is an app operated 12 – 24v dry contact relay. It is a good solution for operating your roller doors, gates, bollards, or via a buffered relay – electric strikes and maglocks.

Connecting appLOK G2 gateway also offers remote access through the appLOK App to your device.
The controller can be set to open / close the low voltage relay from 1 – 900 seconds via the appLOK App.

It is supplied with an IP68 weather enclosure for protection on external installations.

OS-SN9134

12- 24v DC.
BLE 4.0 and above.
Built-in real time chip.
Built-in antenna.

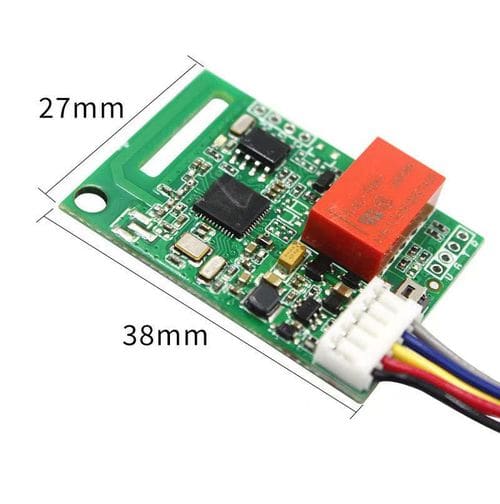

38 L x 27 W mm.
Working temperature -20° ~ 70°.

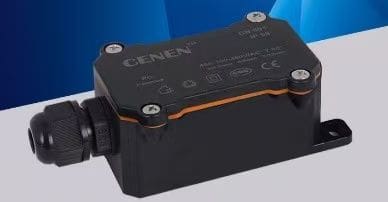

Weather case enclosure

50 L x 30 H x 21 mm W.
IP68
