appLOK Smart Keypad

Description

appLOK Narrow Smart Keypad with Fingerprint, Digital PIN Code, RFID Tag and Mobile App Functionality.

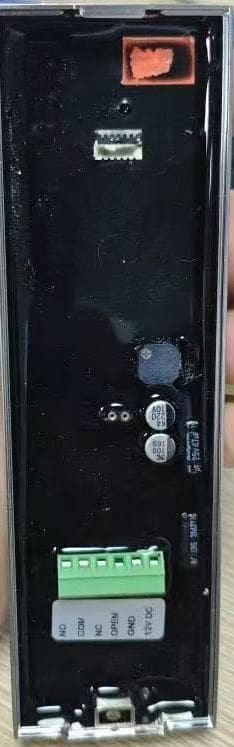

This appLOK Smart Keypad comes with a built-in single door controller
Compatible with the majority of electric strikes, maglocks and other access control locking systems in the market
IP66 Rating on keypad means it can be installed in almost any application
Use and manage the keypad via appLOK Phone App. Open the lock, add users, issue temporary codes and lots more
More Smart Keypads / Doors can be added using the appLOK platform
Add up to 1350 x Users
Fingerprint sensor is located at the bottom of the keypad
Optional G2 Gateway accessories allow for remote access and control of the keypad via internet

Supplied with:

1 x Wall mounting kit (4 x screws, 4 x wall plugs & 1 x Allen Key)
1 x IP66 Kit (45g wiring sealant)
1 x Instruction manual
2 x appLOK RFID tags

PRODUCT SPECIFICATION

Finish: Silver body with black keypad & fingerprint sensor

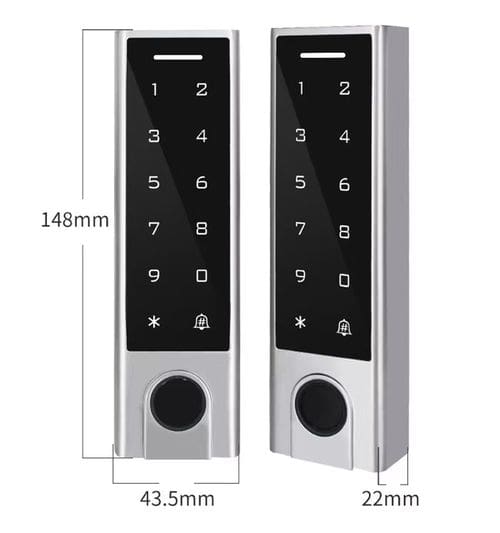

Dimensions (W x H x D): 43.5 x 148 x 22mm
Supporting Systems: Android 4.3 / iOS 7.0 & Above
Stand-by Current: 84mA
Operating Current: ≈ 150mA
Power Supply: DC 12V
IP Rating: IP66
RFID Tag Capacity: 1000
PIN Code Capacity: 250
Fingerprint Capacity: 100
Bluetooth E-Keys: Unlimited
